Key Features
High-Performance Operation
- Powerful Flow Rate: Capable of handling a high volume of liquid transfer with precision.
- Versatile Application: Suitable for transferring oil, coolant, and other non-corrosive fluids.
- Durable Construction: Built from high-quality materials for long-lasting reliability.
User-Friendly Design
- Compact & Portable: Lightweight yet robust, allowing for easy handling and maneuverability.
- Quick Connection: Designed for straightforward installation and operation.
- Low Maintenance: Engineered for minimal upkeep, reducing downtime and operational costs.
Ideal for Industrial Use

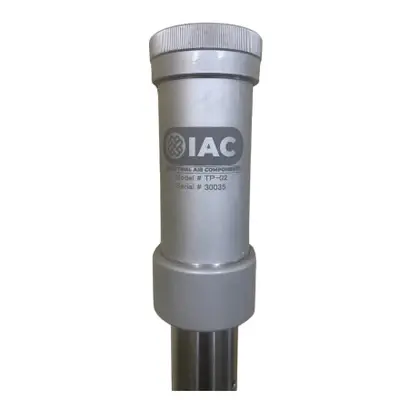

The TP-02 Transfer Pump is perfect for industries requiring a dependable fluid transfer solution. Whether in automotive, manufacturing, or general industrial applications, it ensures smooth and efficient operation.
Upgrade your workflow with the Industrial Air Components TP-02 Transfer Pump—built for performance, efficiency, and durability.
Technical Specification
| Specification | Value | Explanation |
| Fluid Ratio | 2:1 | Ratio of fluid pressure increase relative to air input. |
| Max Output Flow Int | 4 gpm (15.2 lpm) | Maximum intermittent output flow rate. |
| Max Output Flow Cont | 2.5 gpm (9.5 lpm) | Maximum continuous output flow rate. |
| Max Output Pressure | 360 psi (24.8 bar) | Maximum pressure the pump can deliver. |
| Max Air Input Pressure | 180 psi (12.4 bar) | Maximum air pressure the pump can handle. |
| Air Inlet Port | 1/4 npt(f) | Air inlet connection type. |
| Fluid Outlet Port | 3/4 npt(f) | Fluid outlet connection type. |
| Rod Piston Packings | PTFE | Material of rod piston packings. |
| Other Seals | PTFE /PEEK | Material of other seals. |
| Rod Cylinder | Stainless Steel | Material of rod cylinder. |
| Other Wetted Parts | Stainless Steel | Material of other parts in contact with fluid. |
