Key Features:
- Superior Air Quality: Dew point of 2-10°C, removes 93% of water, reduces oil to <5 PPM. Optional filtration to 0.01μ.
- Efficient Refrigeration: High-performance compressor (10,000+ hour lifespan), counter-current heat exchanger, air-cooled condenser.
- Compact and Cost-Effective: Minimal space, low operating costs, energy efficient.
- Easy to Use and Maintain: Electronic automatic drain, simple controls, removable access panels.
- Versatile Applications: Ideal for spray foam, polyurea coating, pneumatic systems, and more.
Technical Specifications
| Specification | Value | Explanation |

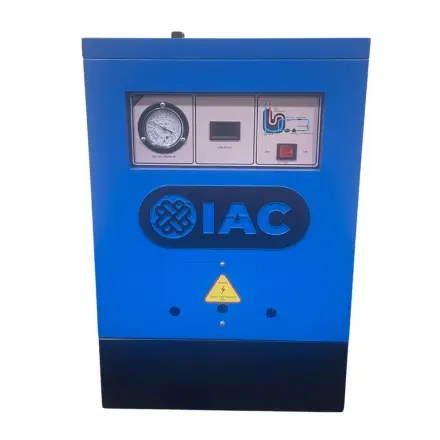

| Model | ASC-753PH | Industrial Air Components model number. |
| Flow Rate | 35 CFM (1000 l/min, 60 m³/h) | Volume of compressed air handled per minute/hour. |
| Connections | 1/2" NPT-F (Female) | Air inlet and outlet connection type. |
| Nominal Air Pressure | 116 PSI (0.8 MPa) | Typical operating pressure. |
| Maximum Air Pressure | 145 PSI (1.0 MPa) | Maximum safe operating pressure. |
| Inlet Pressure | 0.6-1.0 MPa | Operating inlet pressure range |
| Dew Point | 2-10°C | Desired humidity level of exit air. |
| Inlet Temperature | ≤45°C | Maximum allowable air inlet temperature. |
| Outlet Temperature | 10-20°C | Typical air outlet temperature range. |
| Voltage & Frequency | 110V, 60Hz | Electrical power requirements. |
| Nominal Amp Draw | 3A | Current draw during operation. |
| Wire Gauge | AWG 16 GA | Recommended electrical wire thickness. |
| Oil Removal | <5 PPM | Particles of oil remaining in air stream |
| Water Removal | 93% | Percentage of water removed. |
| Weight | ~60 Kg | Approx. unit weight. |
| Application Suitability | Pneumatic Systems, precision Instruments, Coating applications, food/pharmaceutical processing, Electronics. | Broad Usage applications. |
| Compressor Lifetime | 10,000+ hours | Estimated usage lifetime of compressor. |
